How the dashboard works

The magic behind the NPI/CPI dashboard·explained without code·June 2026

Every card on the NPI/CPI dashboard is built from information that already exists somewhere else — a Product Manager's status slide, or a Jira release plan. Nothing is typed in twice, and nothing is published without a person approving it.

This page shows exactly which part of each source ends up where on a dashboard card. Follow the numbered, colour-coded markers: a marker on the source (left) lands on the matching marker on the card (right).

The whole pipeline

Four steps, one human gate

The PM's slide

PMs keep writing the same PowerPoint status slides they always have.

Claude drafts a file

Claude Code reads the slide and fills in a draft text file — one per project.

A person approves

The operator reads the draft and approves it by renaming the file. No approval, no dashboard.

Disabled now

The dashboard

A small script turns the approved files into the cards you see — the same way every time.

Step three used to be the gate — a person approved each card by renaming the file. That approval is now disabled.

Chapter 1 · PowerPoint

From the PM's PowerPoint to a project card

This is a real status slide (project QA50, April 2026). The amber markers show what gets read off the slide — and where each piece lands on the dashboard card.

Source — PowerPoint status slide

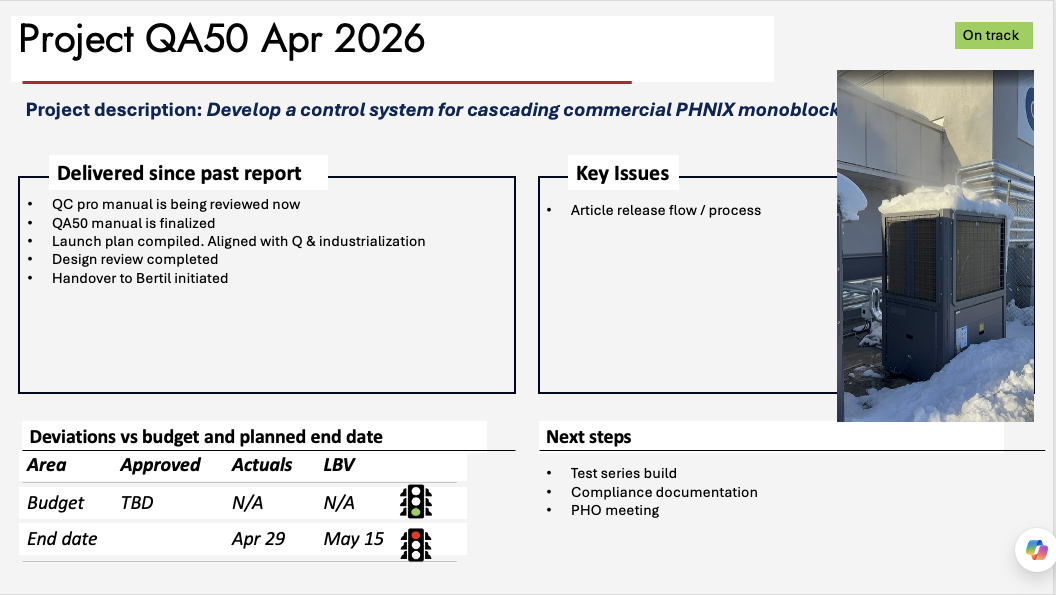

A PM status slide for project QA50 with title, status chip, delivered list, key issues, budget table and next steps

Where it lands — project card on the dashboard

1QA50Cascade control system industrialisation 2on-track PHO: W28 Bertil

85%

5med

Owner: Bertil MAB: 2026-06-21 Updated: 2026-04-28

3Develop a control system for cascading commercial PHNIX monoblocks

Plan

4 Delivered since past report

QC pro manual is being reviewed now
QA50 manual is finalized
Launch plan compiled. Aligned with Q & industrialization
Design review completed
Handover to Bertil initiated

7Test series build2026-06
Compliance documentation2026-06
PHO meeting2026-07

Maturity

85%

Components: 102 / 110
Sourcing: locked

6 Budget & end date

	Approved	Actuals	LBV
Budget (kEUR)	—	—	—
End date	—	Apr 29	May 15

Faded fields (owner, MAB date, BOM maturity, sourcing…) are not on the slide — they come from the project file, which the operator fills in. Chapter 3 shows that file.

1Slide title → project code and name in the card header
2The colour chip ("On track" / "Delayed") → the status chip on the card
3Project description → the card headline
4"Delivered since past report" bullets → the same list, verbatim, on the card
5"Key Issues" → the top-risk callout (and the risk chip in the header row)
6"Deviations vs budget and planned end date" grid → the budget & end-date mini-table
7"Next steps" → the next three milestones

Chapter 1b · MAB Product-Spec

From the MAB Product-Spec slide — the target PHO week

The MAB deck also holds one Product Spec slide per product (below: QE-M from the May 2026 deck, rebuilt in HTML faithful to the real slide). The dashboard reads the highlighted values — most importantly the line after Target PHO:.

Source — MAB Product-Spec slide

QVANTUM

QE-M

Product Spec

Product data

5New compressor unit for QE-4 and 6
R290 refrigerant
Backwards compatible
Designed for a modular installation (Split)

Prices for the AIO product

Target Net Installer Price	xx kSEK
Target installed price	xx kSEK
Target BOM	xx kSEK

Project data

Project leader	2Marcus Cederholm
Tech Lead
Estimated man years	xxxx
LT target volumes	4xxxx
Key markets/segments	3UK, DE, NL, SE
Target PHO:	12026 November
Certifications:	August
Resources secured	Y
Sign off from local PM’s	(N)

Where it lands — the QE-M card on the dashboard

QE-MNew compressor unit for QE-4 and 6 development 1PHO: W49 2Marcus Cederholm

Owner: Marcus Cederholm 3UKDENLSE

5New compressor unit for QE-4 and 6 — R290 refrigerant, backwards compatible, designed for a modular installation (split).

LT vol target: 4xxxx

The faded stage chip is not on the Product-Spec slide — it comes from the project file, like everything else the operator fills in by hand.

1The value after "Target PHO:" → the week on the collapsed row, "PHO: W49". An explicit week on the slide ("W28 2026", "wk.22") is used as written; a bare month becomes the week of that month's last day ("2026 November" → 2026-11-30 → W49).
2Project leader → the card owner
3Key markets/segments → the market chips
4LT target volumes → "LT vol target" under Maturity
5First Product-data line → the card headline

Chapter 2 · Jira

From Jira to a software-release card

Software releases aren't typed in at all. A read-only connection asks Jira for the release plans of the Display (QD) and App (QHA) teams — below, the real QHA Releases page. The dashboard never writes anything back to Jira.

Source — Jira "Releases" page (read-only)

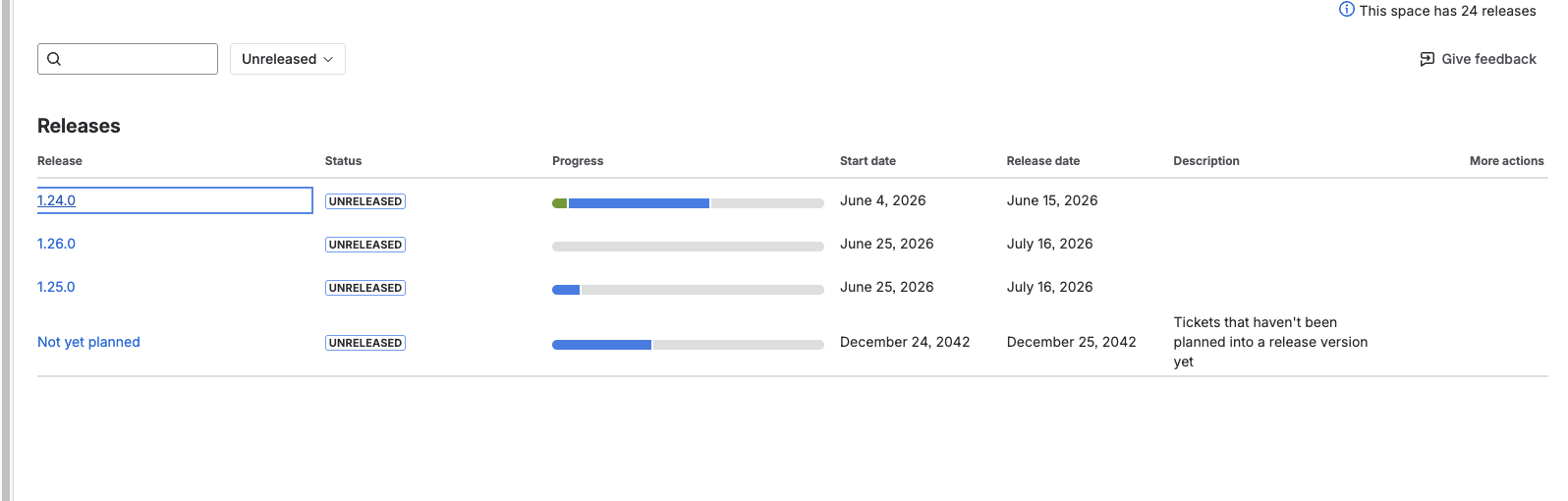

The Jira releases page for the QHA heat-pump app project, listing versions with status, progress and dates

Where it lands — SW-release card on the dashboard

SW1App 1.24.0 2Release: 2026-06-15

Stream: App Release date: 2026-06-15 Work items: 19

3 Work items — 1 of 19 done

Done: 1
In progress: 13
To do: 5

1The release version number → the card title ("App 1.24.0")
2The planned release date → "Release:" on the card
3The work-item progress behind the bar → the done / in-progress / to-do counts and the percentage bar
4The "Unreleased" filter → the selection rule: only the two next upcoming open versions per team become cards, so the dashboard always shows what ships next

Chapter 3 · The file & the human

The file in the middle — and the human approval Disabled

Between the sources and the dashboard sits one plain text file per project. It's the part anyone can open, read, and check — no Excel, no database, no code. Claude fills it in from the slide; the operator completes the few fields slides don't carry (green markers) and approves.

The project file — projects/qa50.txt

projects/qa50.txt

# QA50 — edit the value after each colon.
# Lines starting with # are ignored.

project_code: QA50
project_name: Cascade control system
owner_pm: Bertil1
stage: industrialisation
status_tag: on-track

headline: Develop a control system for
  cascading commercial PHNIX monoblocks

milestone_1: Test series build | 2026-06
bom_maturity_pct: 852
sourcing_status: locked3

top_risk: Article release flow / process
risk_severity: med

delivered_since_past_report:
- QC pro manual is being reviewed now
- QA50 manual is finalized

The approval — a rename, done by a person

projects/draft-qa50.txt → you read it → you rename it → projects/qa50.txt

1Owner, MAB date and a few other fields aren't on the slide — the operator types them once, here
2BOM maturity comes from the component tracking, not the slide
3Sourcing status likewise — the dashboard only accepts the exact words early / mid / locked, so wording stays consistent across all projects

Two safety nets are always on: a file still named draft-… is invisible to the dashboard, and every refresh first makes a dated backup of all project files and of the previous site. A wrong word (say, "Concept" with a capital C) stops the render with a message naming the file and line — it can't slip through silently.

Built from trusted sources, and backed up every week

The slides stay the PMs' own. Claude drafts the project files and a small, fixed script renders them. (The draft-and-rename human approval is now disabled — see Chapter 3.) Jira is read, never written. Every weekly refresh keeps a dated backup of both the data and the previous dashboard — so any week can be compared with, or restored to, the one before.
